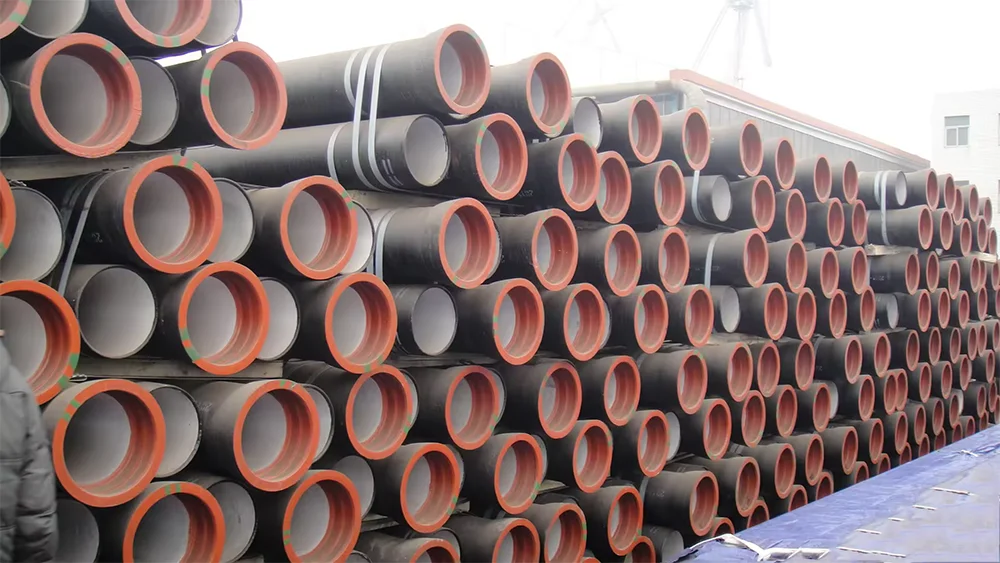

Push-in Ductile Iron Pipe

Pipeline jacking is mainly used in special construction projects. Pipelines need to cross obstacles such as roads, railways, rivers, and ground buildings. It is not allowed or difficult to dig trenches on the ground at the construction site.

The use of trenchless technology has been recognized by the majority of users and solved some construction problems encountered in special projects.

Standards: ISO2531, EN545, EN598.

Category: K, C

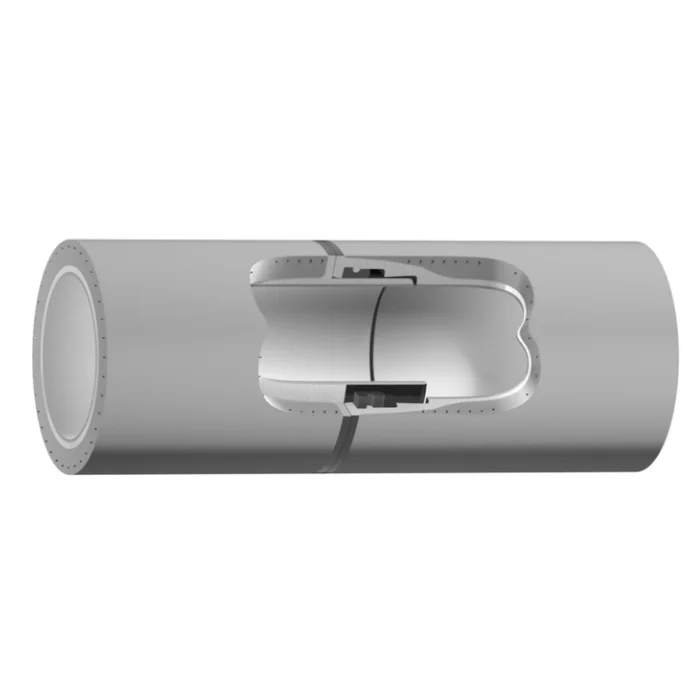

Joint type: top connection ductile iron pipe

Range: DN80-DN2600

Length: 8.15m, 6.0m, 5.7m, can be customized according to customer requirements

Application: water supply engineering drainage, sewage irrigation, water pipeline, etc.

Internal coating: Portland cement mortar lining;

Sulfate-resistant cement mortar lining;

High alumina cement mortar;

Fusion epoxy coating;

Polyurethane lining ceramic epoxy lining PU;

Coating can also be done according to customer requirements

Extenal: Zinc (130 g/m2) + Asphalt (70 microns) painting/130 g/m2;

Fusion epoxy coating/Zinc aluminum alloy (400g/m2) + Liquid epoxy coating/400g/m2;

Coating can also be done according to customer requirements.

Accessories: Rubber ring (SBR, NBR, EPDMVSBR, NBR, EPDM)

Packaging: Bulk, steel strapping.
