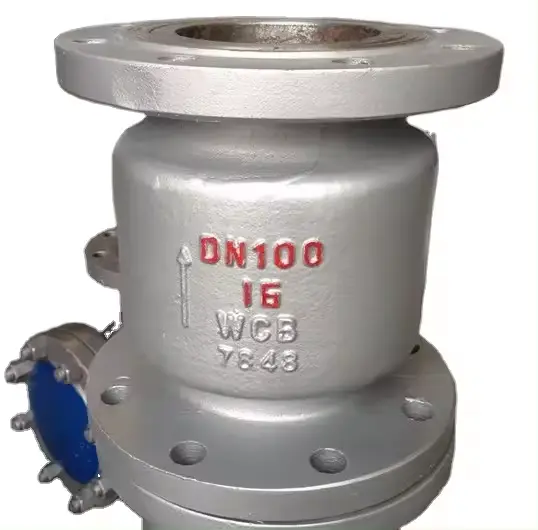

Check Valve

Warranty period: 1 year Body material: Carbon steel Type: Water stop valve

Send Inquiry

Product Description

Check Valve

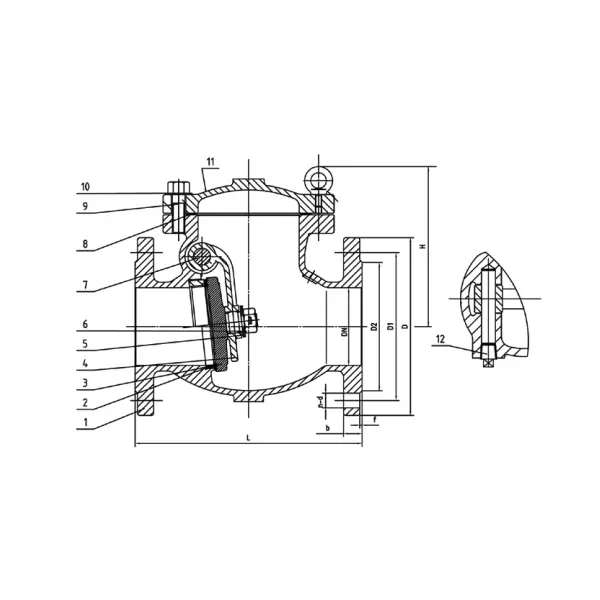

DN		PN	Dimensions(mm)
Inch	mm	PN	L	D	D1	D2	b	n-φd	f	H
2	50	10/16	200	165	125	99	19	4-19	3	146
2.5	65	10/16	240	185	145	118	19	4-19	3	155
3	80	10/16	260	200	160	132	19	8-19	3	173
4	100	10/16	300	220	180	156	19	8-19	3	180
5	125	10/16	350	250	210	184	19	8-19	3	212
6	150	10/16	400	285	240	211	19	8-23	3	260
8	200	10	500	340	295	266	20	8-23	3	290
8	200	16	500	340	295	266	20	12-23	3	290
10	250	10	600	405	350	319	22	12-23	3	339
10	250	16	600	405	355	319	22	12-28	3	339
12	300	10	700	460	400	370	24.5	12-23	4	376
12	300	16	700	460	410	370	24.5	12-28	4	376

Warranty period: 1 year

Material: Carbon steel

Type: Check valve

Customization support: OBM

Principle: A valve whose opening and closing parts are circular gate discs and rely on their own weight and medium pressure to produce movement to block the backflow of the medium.

Classification: Lift type and swing type
