Product Description

Structural features and uses

The opening and closing parts of the knife gate valve are the gate plates, and the moving direction of the gate plates is perpendicular to the direction of the fluid. The knife gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The knife gate valve adopts a sandwich-integrated structure with a small size. Light weight: the fully open channel can prevent the medium from depositing in the valve. The replaceable sealing structure solves the problem of difficult maintenance of the knife gate. At the same time, the valve body material has been newly developed from the original steel material to ductile iron material, which has better corrosion resistance and effectively extends the service life.

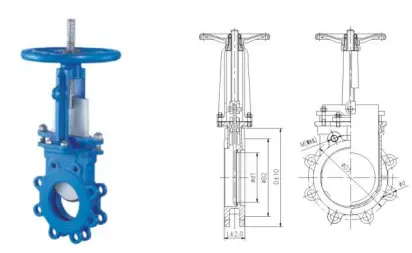

Knife Valve2

Main dimensions

DN	L	D	d1	D2	03	M	d	Number of holes
50	48	160	46	100	125	M16	18	4
65	48	180	65	120	145	M16	18	4
80	51	195	74	135	160	M16	18	8
100	51	215	90	155	180	M16	18	8
125	57	245	115	185	210	M16	18	8
150	57	280	139	210	240	M20	22	8
200	70	335	185	265	295	M20	22	8
250	70	390	232	320	350	M20	22	12
300	76	440	282	368	400	M20	22	12
350	76	500	335	428	460	M20	22	16
400	89	565	382	482	515	M22	24	16
450	89	615	425	532	565	M22	24	20
500	114	670	475	585	620	M22	24	20
600	114	780	570	685	725	M27	30	20

Specification: DN40-DN800

Warranty: 1 year

Application: Water quality control

Pressure: PN10, PN16 PN25

Standard: Drum

Features: Clamp and lug type 360° disc ensures forward switching One or two shafts Hard back insert seat or edge guided seat Actuator: Handle; Worm gear; Pneumatic/electric; Field coating.
