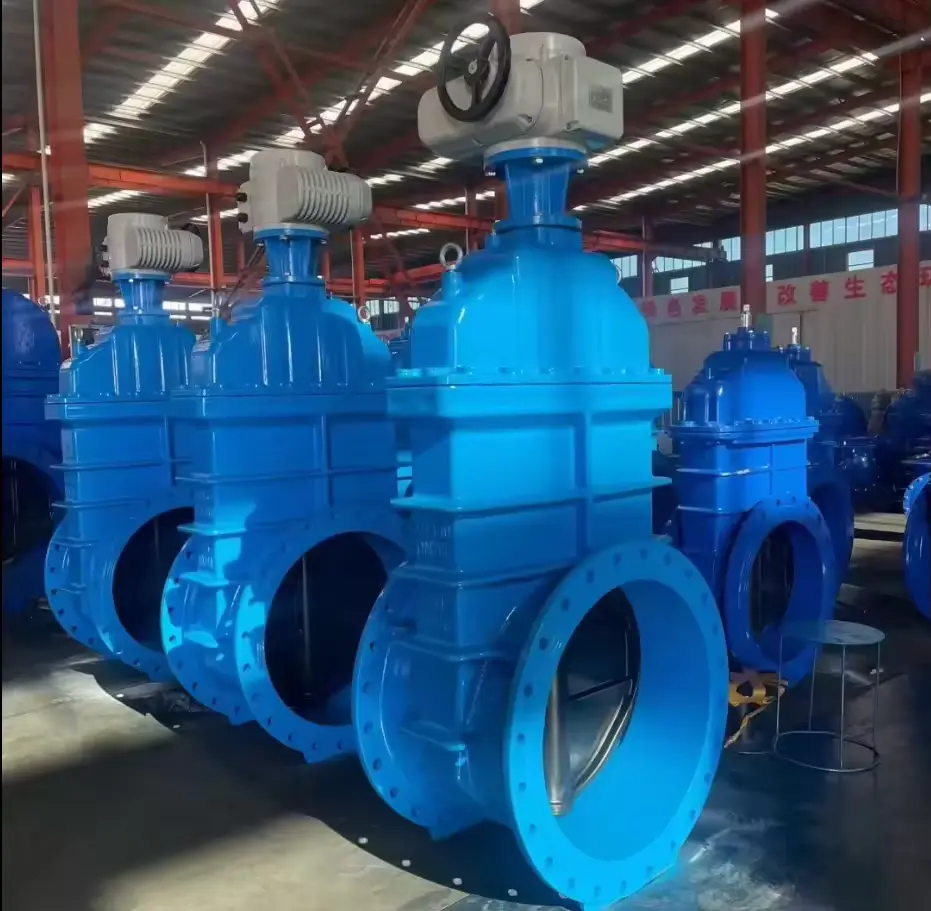

NRS Gate Valve with Flexible Flange
Warranty: 1 year Body material: Ductile iron Port size: 2 inches - 24 inches

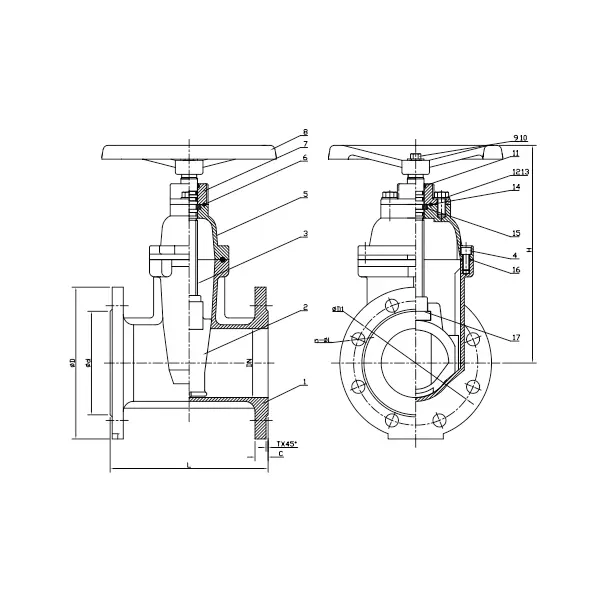

| DN | PN | Dimensions(mm) | |||||||||
| Inch | mm | L | H | D | D1 | d | C | T | n-φL | ||
| TypeA | TypeB | ||||||||||
| 2" | 50 | 10/16 | 178 | 218 | 254 | 165 | 125 | 99 | 19 | 3 | 4-φ19 |
| 2.5" | 65 | 10/16 | 190 | 232 | 275 | 185 | 145 | 118 | 19 | 3 | 4-φ19 |
| 3" | 80 | 10/16 | 203 | 281 | 301 | 200 | 160 | 132 | 19 | 3 | 8-φ19 |
| 4" | 100 | 10/16 | 229 | 316 | 355 | 220 | 180 | 156 | 19 | 3 | 8-φ19 |
| 5" | 125 | 10/16 | 254 | 393 | 393 | 250 | 210 | 184 | 19 | 3 | 8-φ19 |
| 6" | 150 | 10/16 | 267 | 420 | 448 | 285 | 240 | 211 | 19 | 3 | 8-φ23 |
| 8" | 200 | 10 | 292 | 490 | 548 | 340 | 295 | 266 | 20 | 3 | 8-φ23 |
| 16 | 12-φ23 | ||||||||||
| 10" | 250 | 10 | 330 | 626 | 626 | 405 | 350 | 319 | 22 | 3 | 12-φ23 |
| 16 | 355 | 12-φ28 | |||||||||
| 12" | 300 | 10 | 356 | 722 | 722 | 460 | 400 | 370 | 24.5 | 4 | 12-φ23 |
| 16 | 410 | 12-φ28 | |||||||||
| 14" | 350 | 10 | 381 | 800 | 800 | 520 | 460 | 429 | 26.5 | 4 | 16-φ23 |
| 16 | 470 | 16-φ28 | |||||||||
| 16" | 400 | 10 | 406 | 870 | 870 | 580 | 515 | 480 | 28 | 4 | 16-φ28 |
| 16 | 525 | 16-φ31 | |||||||||
| 18" | 450 | 10 | 432 | 1108 | 1108 | 640 | 565 | 530 | 30 | 4 | 20-φ28 |
| 16 | 585 | 548 | 20-φ31 | ||||||||
| 20" | 500 | 10 | 457 | 1130 | 1130 | 715 | 620 | 582 | 31.5 | 4 | 20-φ28 |
| 16 | 650 | 609 | 20-φ34 | ||||||||
| 24" | 600 | 10 | 508 | 1311 | 1311 | 840 | 725 | 682 | 36 | 5 | 20-φ31 |
| 16 | 770 | 720 | 20-φ37 | ||||||||
| 28" | 700 | 10 | 610 | 1311 | 1311 | 895 | 840 | 794 | 32.5 | 5 | 24-φ31 |
| 32" | 800 | 10 | 660 | 1750 | 1750 | 1015 | 950 | 901 | 35 | 5 | 24-φ34 |
Warranty period: 1 year
Valve body material: Ductile iron
Port size: 2 -24 inches
Port size: DN50-DN600
Pressure: PN10 / PN16
Working pressure: PN16 /PN25
Valve standard: BS5163
Flange standard: EN1092-2
Temperature range: 0 ~ 80℃
