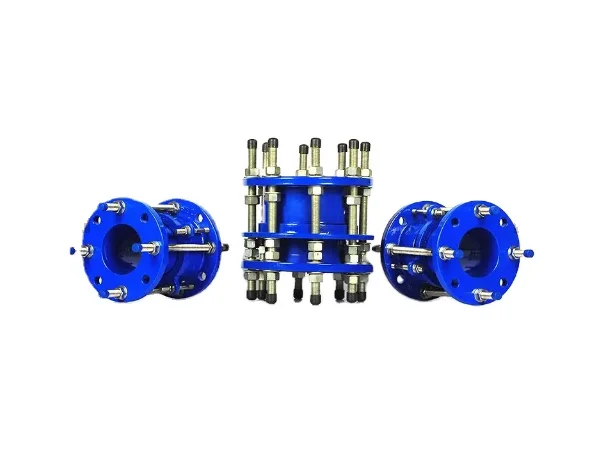

Disassembly Connector PN16

The product categories of ductile iron pipes and fittings mainly include: water supply pipes, drainage pipes, thermal pipes, polyfluoroester lined pipes, argon resin lined pipes, epoxy ceramic lined pipes, PE lined pipes, zinc-aluminum alloy pipes, jacking pipes, drag pipes, self-anchored pipes, sewage pipes and matching pipe fittings.

Send Inquiry

Product Description

Product parameters

Standard: ISO2531, EN545, EN598

Grade: K class, C class

Connection method: T-type interface, GT-type interface, self-anchor interface

Diameter: DN80-DN2600

Length: 8.15m, 6.0m, 5.7m

Applicable fields: urban water supply, drainage, sewage, etc.

Disassembly Connector Pn16

Inner coating: ordinary cement, high sulfur cement, high alumina cement, epoxy powder FBE, PU or PE, customized

Outer coating: 99.99 zinc + black asphalt paint (70 microns), epoxy powder FBE, zinc-aluminum alloy + epoxy paint, PU, customized

Accessories: rubber ring

Packaging: bulk, steel strapping

Warranty period: 1 year

End flange: ductile iron (GGG40/50)

Gland flange: ductile iron (GGG40/50)

Working pressure: PN16

Size: DN50-DN2000

Features: The removable joint can be easily installed and removed, flanged pipes and accessories, or flanged equipment such as valves, instruments, pumps. The joint also allows axial displacement of the pipe during construction and is suitable for water, sewage and neutral liquids up to +80°C.

Color: According to customer requirements

Temperature range: ≤80℃

Material: SS304

Coating: blue molten epoxy powder

Seal: EPDM/NBR

Disassembly Connector Pn16
