Ductile Iron Pipe Fittings - Disassembly Joints

The product categories of ductile iron pipes and fittings mainly include: water supply pipes, drainage pipes, thermal pipes, polyfluoroester lined pipes, argon resin lined pipes, epoxy ceramic lined pipes, PE lined pipes, zinc-aluminum alloy pipes, jacking pipes, drag pipes, self-anchored pipes, sewage pipes and matching pipe fittings.

Send Inquiry

Product Description

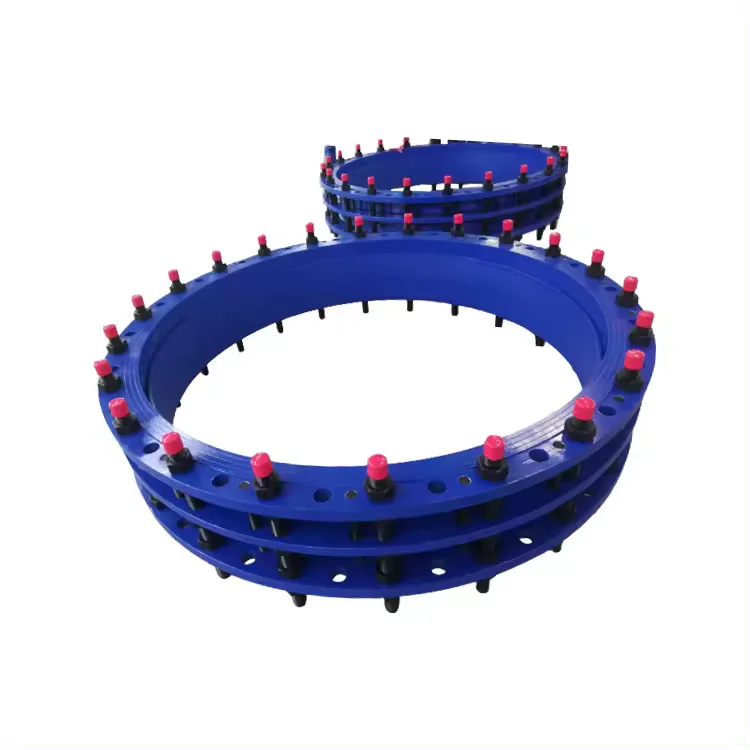

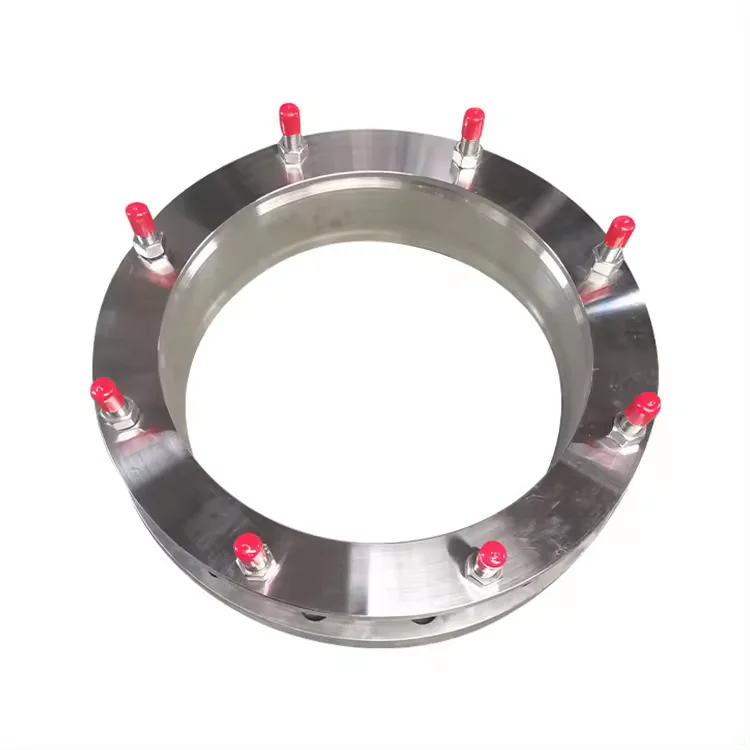

Ductile Iron Pipe Fittings Disassembly Joints

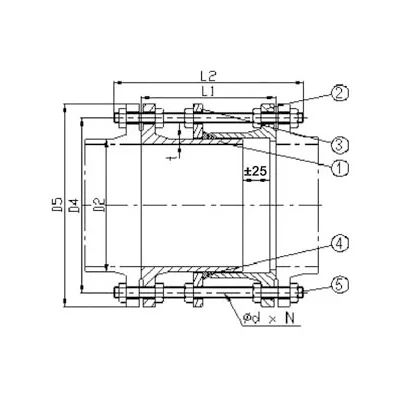

NO.	PART NAME	MATERIAL
1	Flange Spigot	Ductile Iron GGG400-10
2	Flange Body	Ductile lron GGG400-10
3	Retainer	Ductile Iron GGG400-10
4	Gasket	EPDM/NBR
5	Tie Rod	Steel Zinced/Dacromet

DN	D2	D4	D5	L1	L2	d(Φ)	N	t	W(Kg)
50	62	125	165	180	330	M16	4	6.0	8.0
65	78	145	185	180	330	M16	4	6.0	12.0
80	98	160	200	200	340	M16	8	7.0	16.0
100	118	180	220	200	340	M16	8	7.5	19.0
125	144	210	250	200	340	M16	8	7.5	20.0
150	170	240	285	200	340	M20	8	8.0	29.0
200	222	295	340	220	350	M20	8	8.5	37.0
250	274	350	400	230	370	M20	12	9.0	51.0
300	326	400	455	230	390	M20	12	10.0	63.0
350	378	460	505	260	400	M20	16	10.5	83.0
400	429	515	565	260	420	M24	16	11.0	100.0
450	480	565	615	270	435	M24	20	11.5	125.0
500	532	620	670	280	440	M24	20	12.0	132.0
600	635	725	780	300	460	M27	20	13.5	185.0
700	738	840	895	300	480	M27	24	14.5	226.0
800	842	950	1015	320	500	M30	24	16.0	305.0
900	945	1050	1115	320	500	M30	28	17.0	375.0
1000	1048	1160	1230	340	545	M33	28	18.0	425.0
1100	1152	1270	1340	350	545	M33	32	19.5	600.0
1200	1255	1380	1455	360	580	M36	32	20.5	651.0
1400	1462	1590	1675	390	680	M39	36	23.0	917.0
1500	1565	1700	1785	410	680	M39	36	24.0	1200.0
1600	1668	1820	1915	420	700	M45	40	25.5	1285.0
1800	1875	2020	2115	440	720	M45	44	28.0	2050.0
2000	2082	2230	2325	460	720	M45	48	30.0	2500.0

Product parameters

Standard: ISO2531, EN545, EN598

Grade: K class, C class

Connection mode: T-type interface, GT-type interface, self-anchor interface

Diameter: DN80-DN2600

Length: 8.15m, 6.0m, 5.7m

Application: urban water supply, drainage, sewage, etc.

Inner coating: ordinary cement, high sulfur cement, high alumina cement, epoxy powder FBE, PU or PE, customized

Outer coating: 99.99 zinc + black asphalt paint (70 microns), epoxy powder FBE, zinc aluminum alloy + epoxy paint, PU, customized

Accessories: rubber ring

Packaging: bulk, steel strapping

Warranty period: 1 year

Material: ductile iron

Working pressure: PN10, PN16

Standard: ANSI JIS DIN ASME

Features: It consists of flange expansion joint, short pipe flange and force transmission screw. It can compensate for pipeline installation errors through pressure thrust (blind plate force), and the connector cannot absorb axial displacement.

Loose tube connection is mainly used for accessories such as pumps and valves.
