Pipe Flange Adapter

The product categories of ductile iron pipes and fittings mainly include: water supply pipes, drainage pipes, thermal pipes, polyfluoroester lined pipes, argon resin lined pipes, epoxy ceramic lined pipes, PE lined pipes, zinc-aluminum alloy pipes, jacking pipes, drag pipes, self-anchored pipes, sewage pipes and matching pipe fittings.

Send Inquiry

Product Description

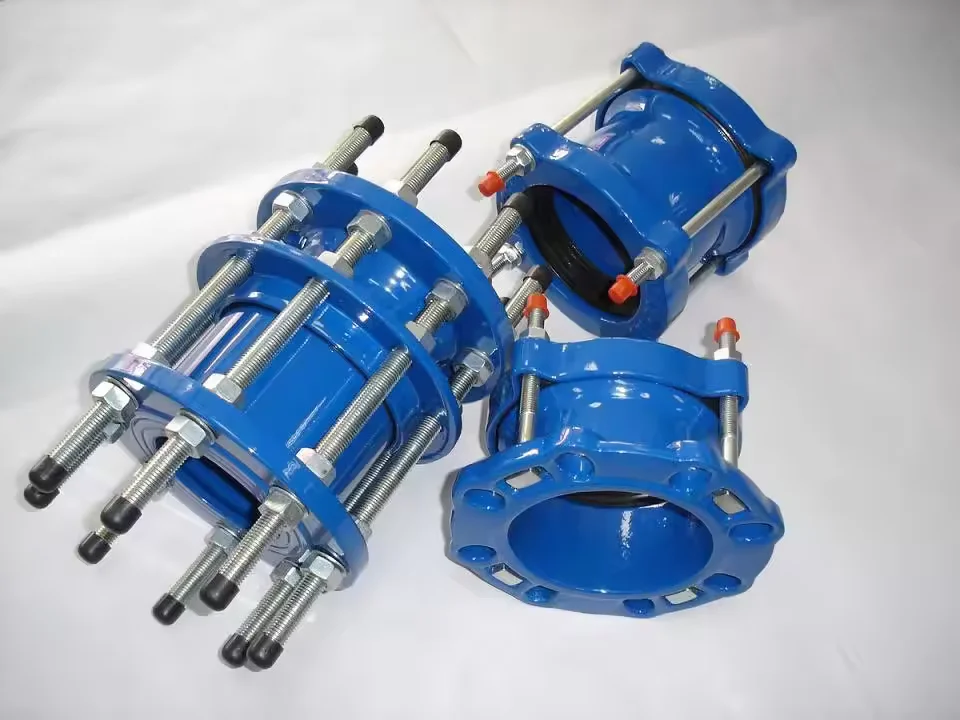

Hdpe Pipe Flange Adapter

Specification:

No.	Part	Material
1	Body	GGG450-10
2	Lip seal	EPDM
3	Spacer bush	PE
4	Grip ring	Brass Ms58
5	Lock ring	GGG450-10
6	Bolts	Stainless Steel

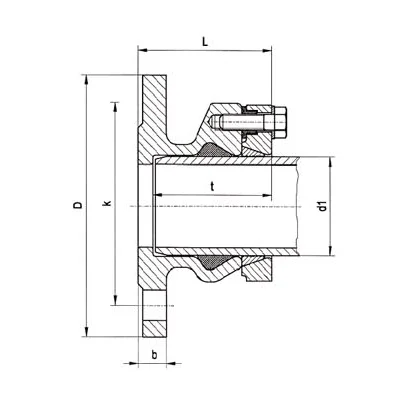

Size	Pipe	Dimensions					Weight
DN mm	d1 mm	D mm	k mm	b mm	I mm	t mm	kg
50	63	165	125	19	90	80	3.6
60	63	175	135	19	90	80	3.8
60	75	175	138	19	92	82	4.0
65	63	185	148	19	90	80	4.3
65	75	185	145	19	92	82	4.3
80	75	200	160	19	92	82	5.0
80	90	200	160	19	95	85	5.5
100	90	220	180	19	95	85	6.8
100	110	220	180	19	95	85	6.2
100	125	220	180	19	97	87	7.0
125	110	250	210	19	95	85	7.8
125	125	250	210	19	97	87	8.2
125	140	250	210	19	103	93	8.5
150	140	285	240	19	103	93	11.3
150	160	285	240	19	115	105	10.5
150	180	285	240	19	125	115	11.6
200	200	340	295	20	135	125	18.0
200	225	340	295	20	138	128	16.0
250	250	400	350	22	155	145	22.0
250	280	400	350	22	158	148	29.0
300	315	455	400	24.5	185	175	44.0
Note:Above flanges are PN10, flange PN16 are available.
