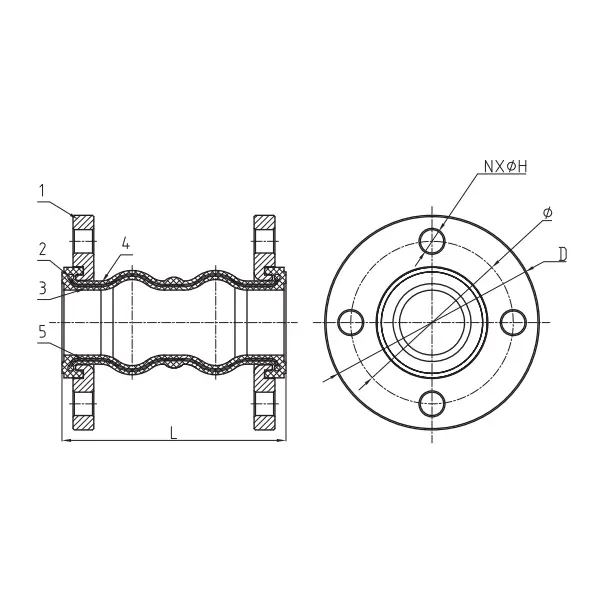

| DN | Neutral Length(mm) | Axial(mm) |
Transverse Movement(mm) |
Angular Deflection Deg. |
|||||
| Inch | mm | L | D | ◎ | N-OH | Elongation | Compression | ||
| 11/4" | 32 | 175 | 140 | 100 | 4X18 | 30 | 45 | 45 | 45 |
| 112" | 40 | 175 | 150 | 110 | 4X18 | 30 | 45 | 45 | 45 |
| 2" | 50 | 175 | 165 | 125 | 4X18 | 30 | 45 | 45 | 45 |
| 212" | 65 | 175 | 185 | 145 | 8X18 | 30 | 45 | 45 | 45 |
| 3° | 80 | 175 | 200 | 160 | 8X18 | 35 | 50 | 40 | 30 |
| 4° | 100 | 225 | 220 | 180 | 8X18 | 35 | 50 | 40 | 30 |
| 5° | 125 | 225 | 250 | 210 | 8X18 | 35 | 50 | 40 | 30 |
| 6" | 150 | 225 | 285 | 240 | 8X22 | 35 | 60 | 35 | 15 |
| 8" | 200 | 325 | 340 | 295 | 12X22 | 35 | 60 | 35 | 15 |
| 10 | 250 | 325 | 405 | 355 | 12X26 | 35 | 60 | 35 | 15 |
| 12 | 300 | 325 | 460 | 410 | 12X26 | 35 | 60 | 35 | 15 |
| 14 | 350 | 350 | 520 | 470 | 12X26 | 35 | 60 | 35 | 15 |
Warranty period: 1 year
Size: custom size

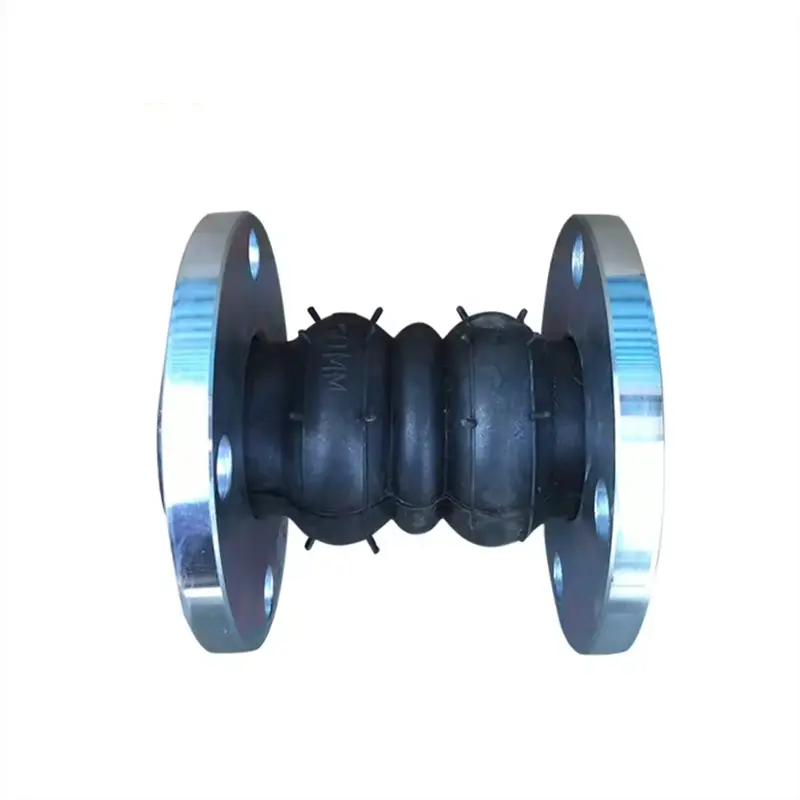

Purpose: connecting pipes
Pressure: PN10, PN16 PN25
Rubber material: natural rubber, nitrile rubber, EPDM, PTFE
Port size: DN32-DN3000
Packaging: inner plastic film, outer carton or wooden box or according to specific requirements
Certificate: ISO, CE
